Kevola Schmidt-Väisälä modernization, 1995

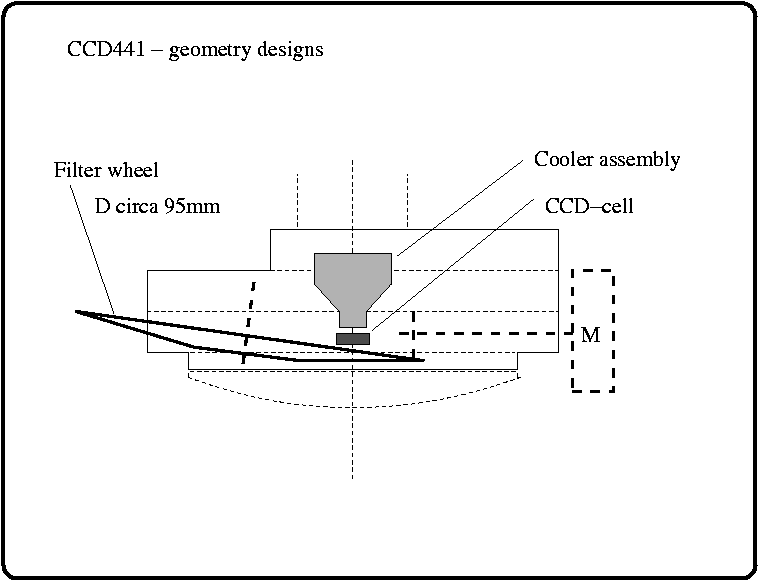

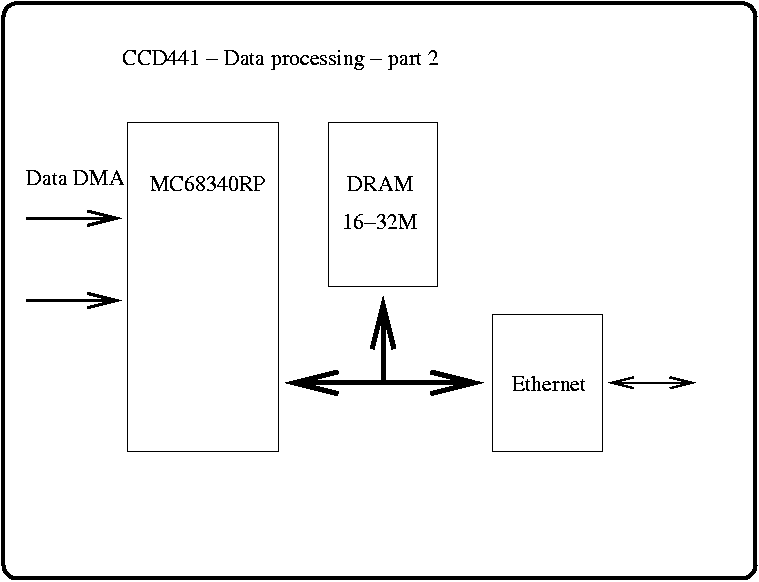

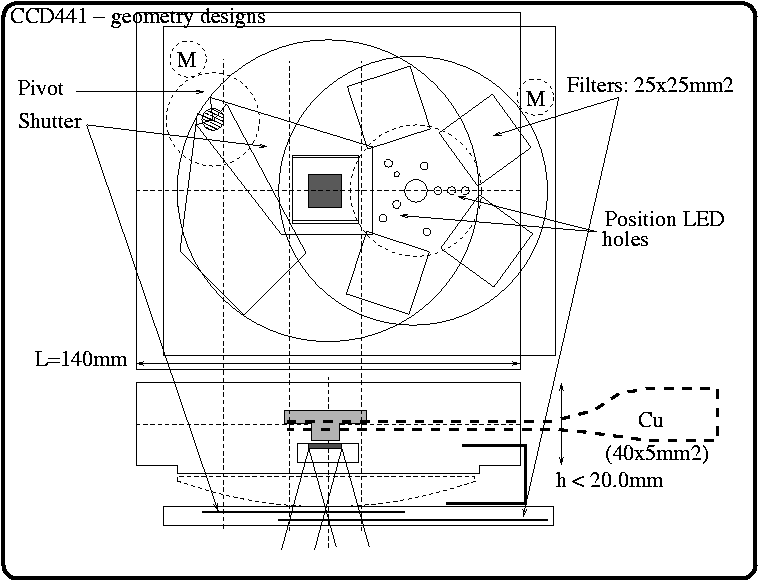

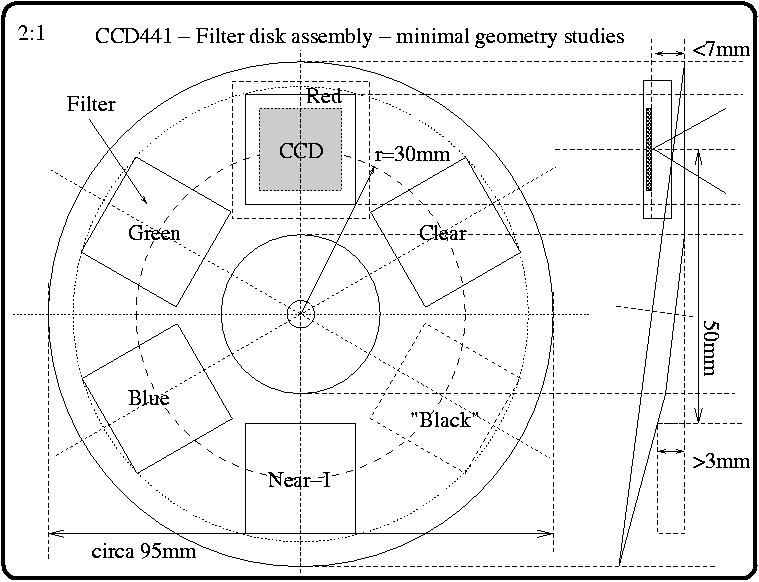

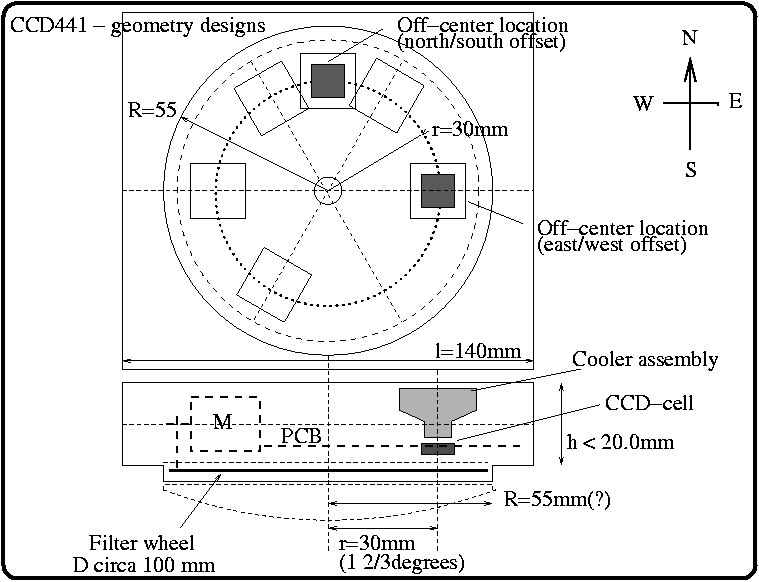

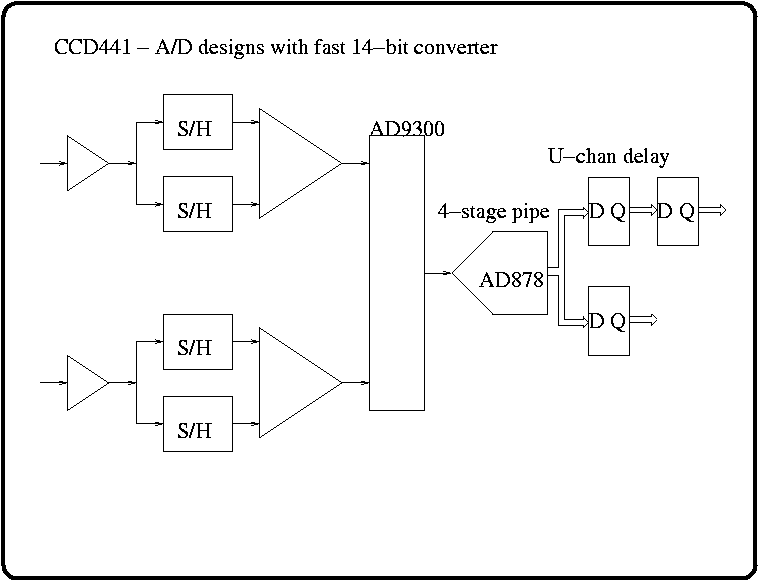

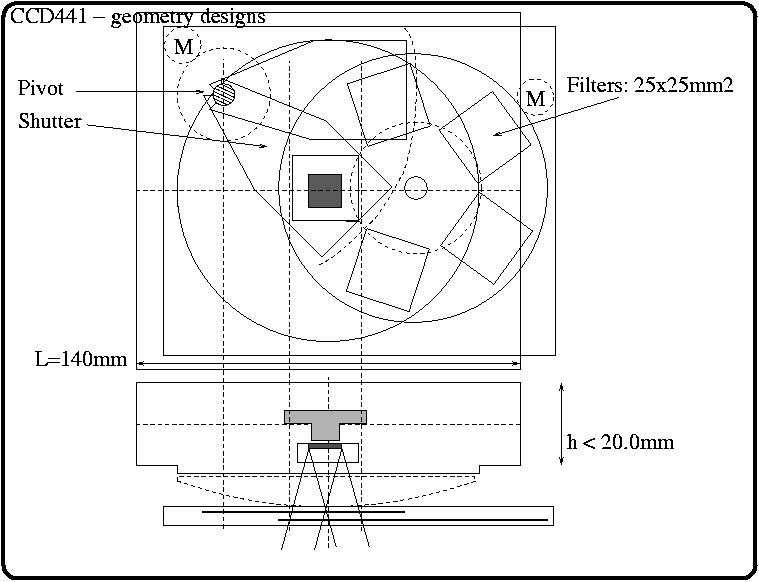

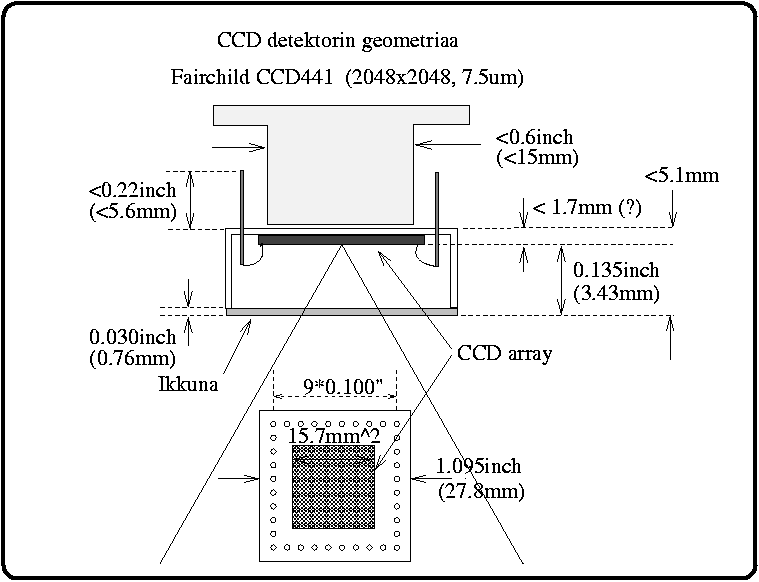

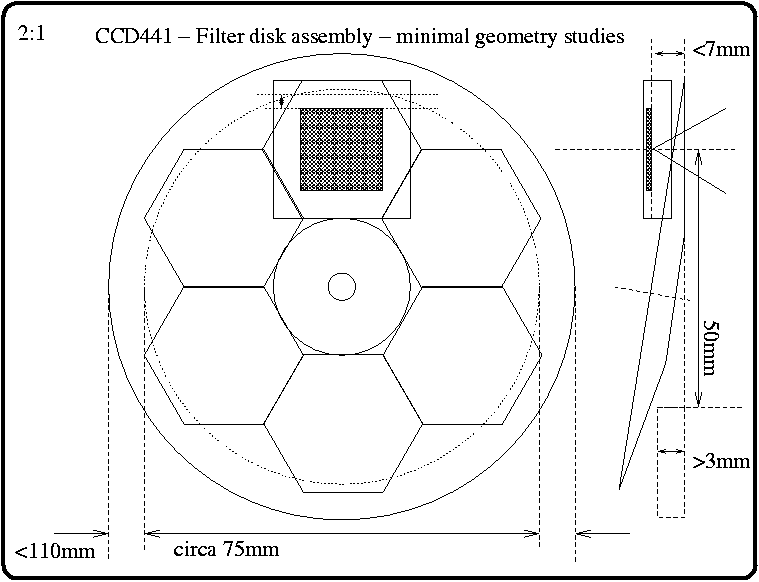

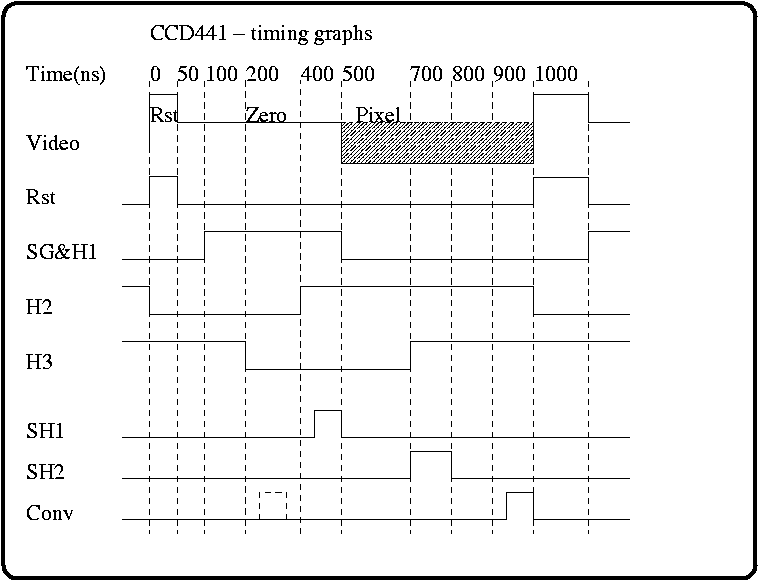

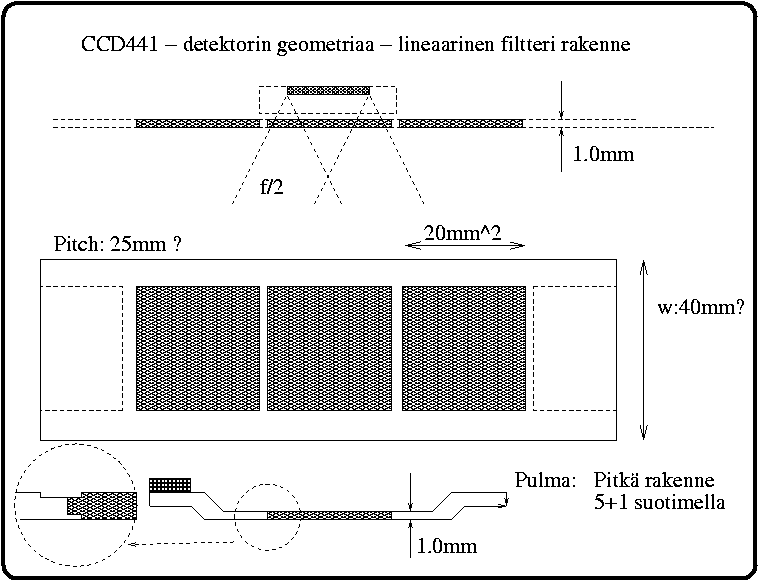

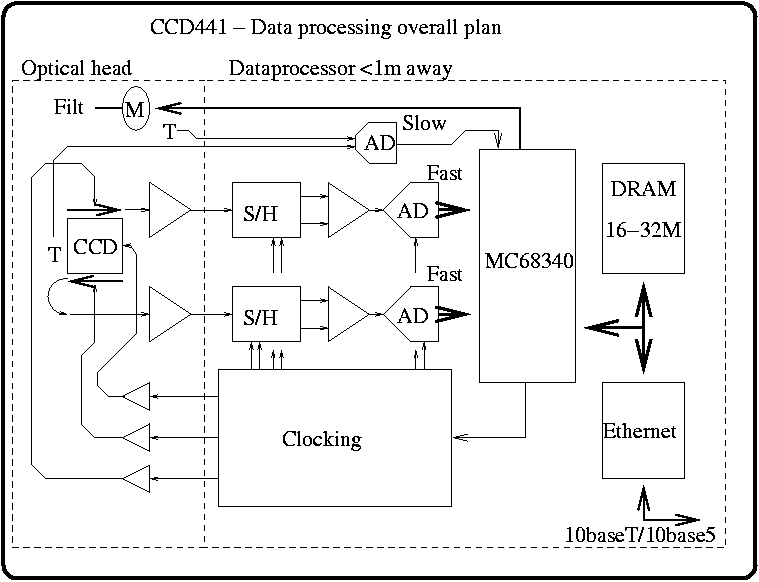

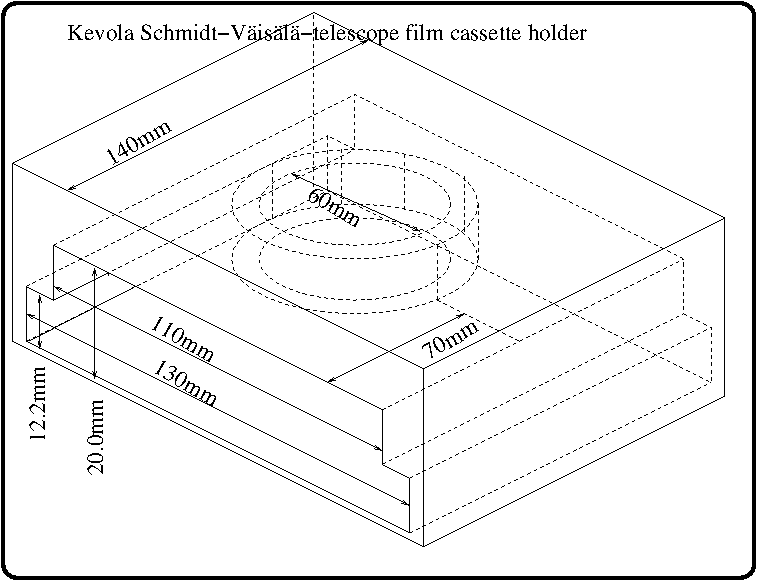

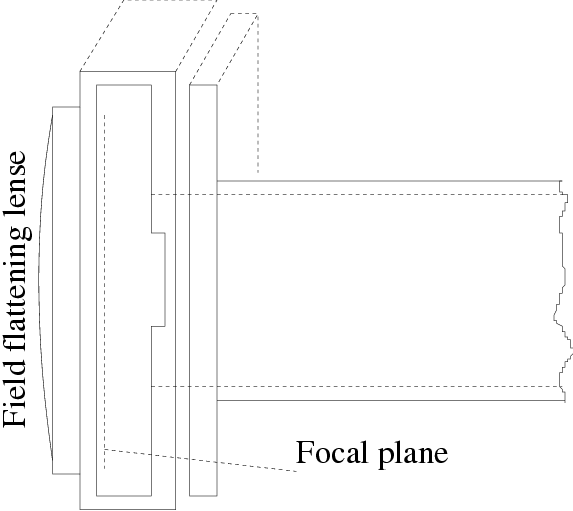

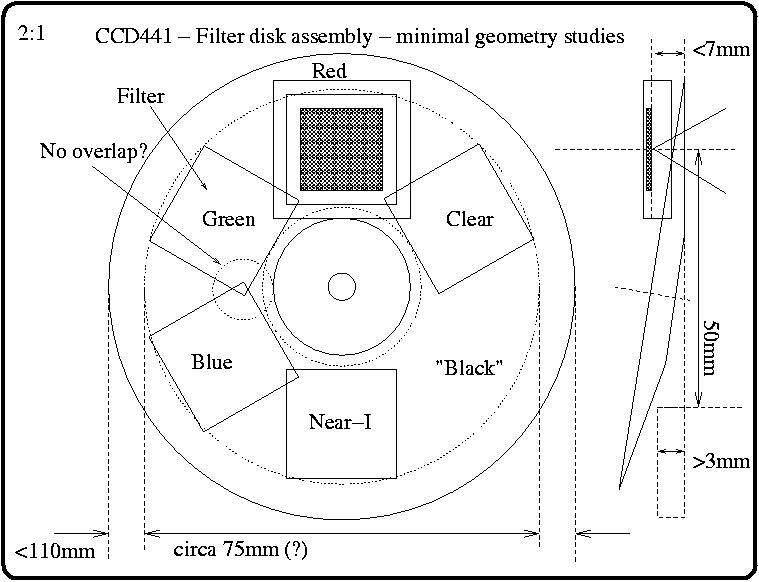

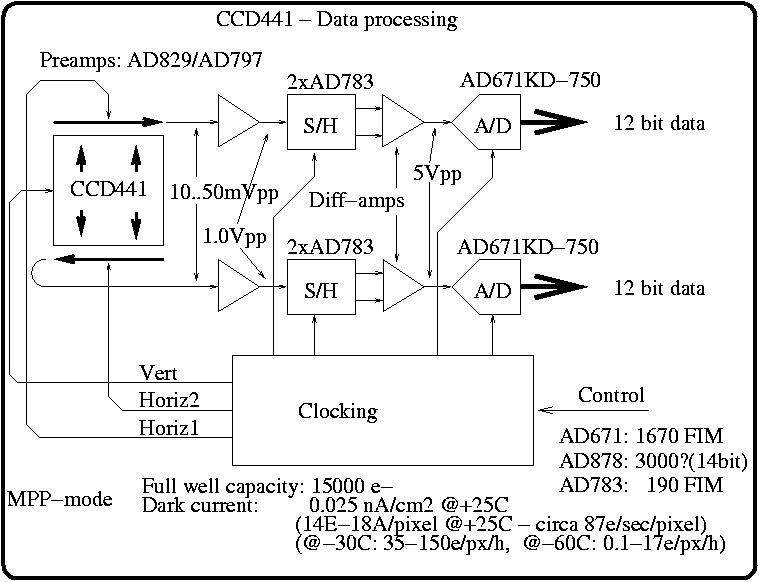

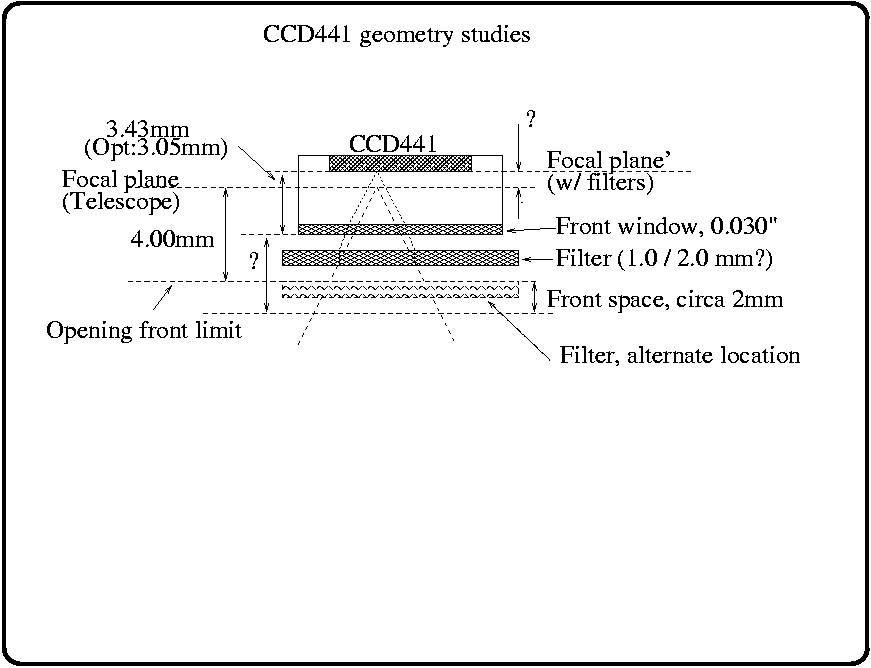

Here are various drawings from 1995, after which the project has been dormant for quite a while.

Clicking on image will give PostScript version of the picture.
